Customized 7 Segment LCD Display HTN Negative Lcd Blue Backgound Display For Sport Equiment
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FHP1104UP01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble bag + Blister + Foam box + Carton |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Type: | Custom HTN Segment Lcd Display | LED: | Blue LED |
|---|---|---|---|
| Voltage: | 3.0V | Connector: | Pin |
| Driving Method: | 1 / 8 Duty , 1 / 6 Bias | Polarizer Type: | Transflective |
| High Light: | custom lcd module,high brightness lcd display |
||
Product Description

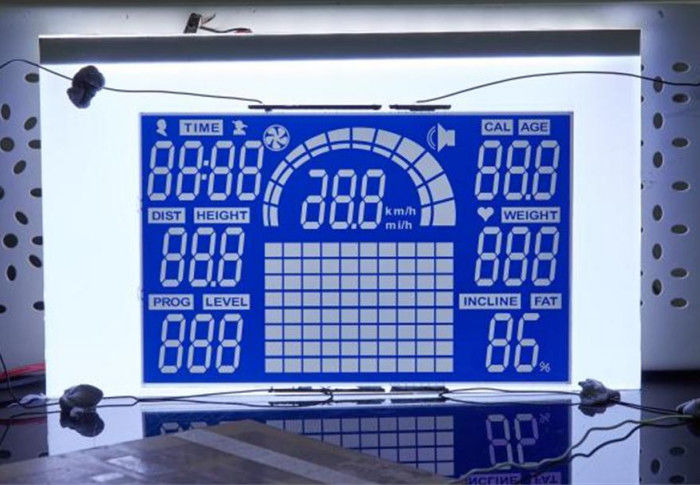

Custom Design Lcd 7 segment Lcd Display HTN Negative Lcd Blue Backgound Display For Sport Equiment
Technical parameters:
TN is the most common display and viewing angle with a narrow range about 40º;
HTN has a wider view than TN , it around 60º
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | TN Segnement Lcd Display |
| 2 | Outline Size | 71.5mm ( L ) * 46.5mm ( W ) * 1.1mm T |
| 3 | VA Size | 67mm ( L ) * 44mm ( W ) |
| 4 | Viewing Direction | 6 O ' clock or 12 O ' clock |
| 5 | Voltage | 5.0V |
| 6 | Display Mode | Positive |
| 7 | Polarizer Mode | Transmissive |
| 8 | Operation temp | - 20°C TO + 70°C |
| 9 | Storage temp | - 30°C TO + 80°C |
| 10 | Twisted Nematic | 120° |
FangSheng Electronics Co., Ltd.
Our products are not only satisfy the display individuation requirement of all the industrial manufacturing factories in the mainland,but also meet the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe, American and Asia pacific. In addition, our products has reached the extent of excellent quality and reliability could be applied in Automotive, Medical, Power station, Transportation, Industrial & Equipment and Office equipment for many famous enterprises in American, France, Italy, Australia, Korea and so on.
Customizing & designing segment, character, graphic LCD Display and LCD Module ( Including LED Backlight ) with different sizes, shapes, display icons for clients.
1. Wide viewing angle
2. Wide temperature
3. Good display
4. LED backlight
5. Various display color
6. Avalible for different application: oven, fridge, air-conditioner,auto etc
7. Optional: metal pin/FPC connector
Viewing Angle
How to select the viewing angle of segment lcd?
It is determined by the direction of friction in the orienting layer and cannot be changed by rotating the Polaroid. The perspective is named after the hour hand, such as 6 o 'clock perspective, 12 o 'clock perspective and so on.
The 6 o 'clock viewing Angle refers to the area from the plane direction at 6 o 'clock clockwise to the normal direction. The LCD display effect is ideal.
The 12:00 viewing Angle refers to the area from the plane at 12 o 'clock clockwise to the normal direction.
The viewing Angle of the LCD is determined by the position of the LCD display on the instrument. For example, the calculator is usually placed on the table or held in the hand, LCD made of 6:00 perspective is better. Some instruments have LCD screens below the eye level, usually at 12:00. The clock in the car is usually mounted on the right side of the driver to make a better 9:00 Angle.
Duty cycle
This parameter is also known as Duty number or COM number. Because STN/TN LCD is usually driven by time-division dynamic scanning mode, in this mode, the ratio of the effective turn-on time of each COM to the whole scan cycle, i.e. Duty, is fixed, equal to 1/COM number. Bias: Bias
The driving waveform of SEG/COM of LCD is analog signal, and the ratio of analog voltage to the maximum output voltage of LCD is called bias. Generally speaking, Bias is expressed by the ratio of the lowest output voltage to the highest output voltage. Generally speaking, there is a certain relationship between Bias and Duty. The more the number of Duty, the shorter the scanning time of each COM. To achieve the same display brightness and contrast, the voltage of VON will be increased, and the difference between the selection level and the non-selection level needs to be increased, that is, Bias needs to be increased. There is an empirical formula between Duty and Bias, that is, to achieve the same display brightness and contrast.
We have strict quality control, to ensure product quality.
Whole production line is in a low temperature, dry and sterile environment.
Whoever enters the workshop must wear overalls.
There is an air shower at each workshop doorway, to blow off dust particles on the surface of overall.
After products have been produced, every lcd or lcm will be 100% tested.
