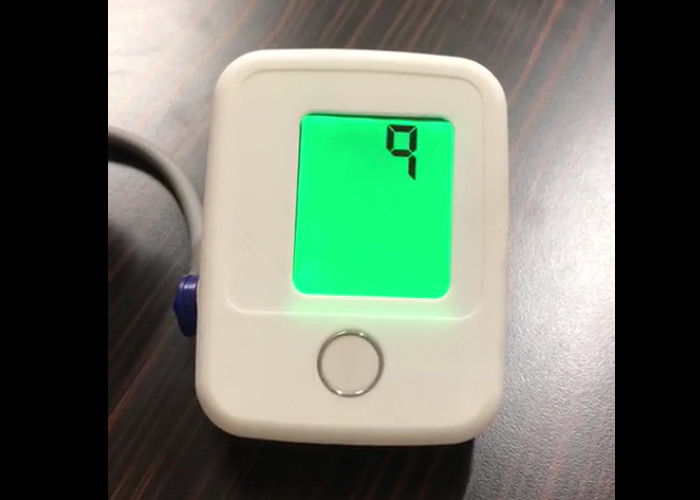

Custom LCD Positive 4 Digit Segment TN Lcd Panel Display For Sphygmomanometer

Custom LCD Positive 4 Digit Segment TN Lcd Panel Display For Sphygmomanometer

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FHTN2012MP01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: HTN LCD Display Backlight Color: Green
Voltage: 3.0 V Connector: Pin , Zebra
Driving Method: 1 / 4 Duty , 1 / 3 Bias Polarizer Type: Transmissive
High Light:

custom lcd module

,

high brightness lcd display

Product Description

High Quality Custom Lcd Positive 4 Digit Segment TN Lcd Panel Display For Sphygmomanometer



A. Specifications:



>>FHTN2012MP01 is a HTN LCD, green on black, transmissive Lcd, working voltage is 3.6V, 12 O’clock viewing angle, HT1621controller, very popular applied for Industrial control, home-appliance, medicial application. FangShen Electronics Co.,Ltd warmly welcome your factory tour.



ITEM CONTENT DESCRIPTION
1 Lcd Type HTN Lcd Display
2 Outline Size 95mm ( L ) * 50mm ( W ) * 1.1mm T
3 VA Size 95mm ( L ) * 50mm ( W )
4 Viewing Direction 6 , 12 O ' clock
5 Voltage 3.6V
6 Display Mode Positive
7 Backlight 3pcs Green LED
8 Operation temp - 20°C TO + 70°C
9 Storage temp - 30°C TO + 80°C
10 Contactor Pin



>>Established in 2001, Fangsheng Electronics has devoted itself to the manufacturing and development of high-quality products.

>>With more than 18 years experience, we became remarkably proficient in complicated order handling

>>As a supplier of international renowned enterprises, most of our products are exported to Europe, America and other countries



B. Product Details:

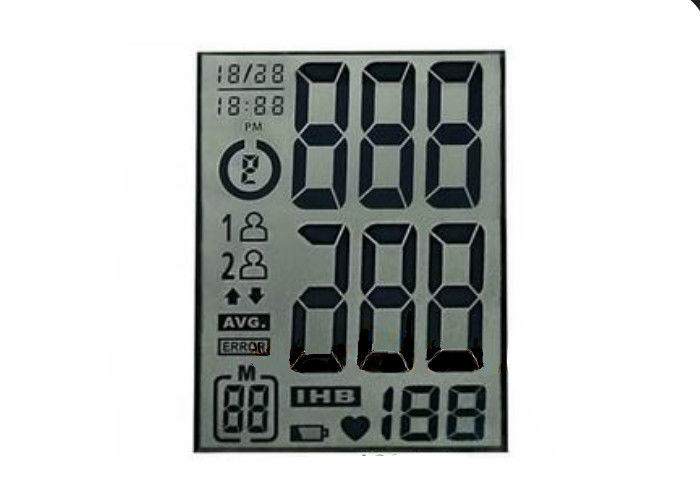

Custom LCD Positive 4 Digit Segment TN Lcd Panel Display For Sphygmomanometer 0

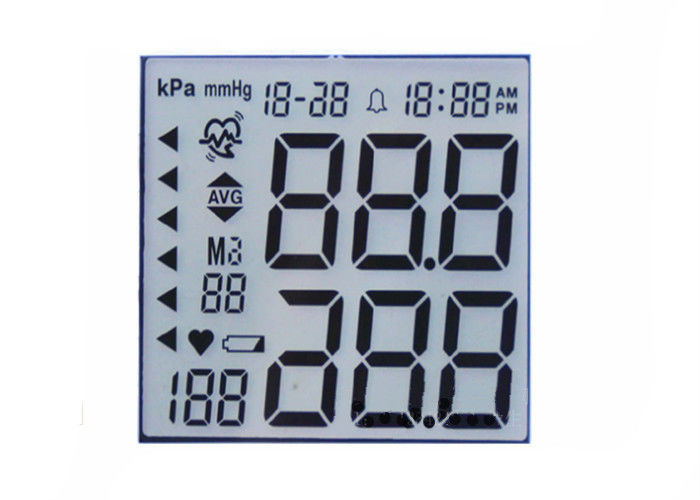

   Custom LCD Positive 4 Digit Segment TN Lcd Panel Display For Sphygmomanometer 1

>>Polarizer:

For the tranmissive lcd, the bottom polarizer of the LCD is fully transmissive , there is no reflector on the back, the light source provided by backlight.

Advantages is: it can be read under the weak light or no light. In the outdoor under sun, the backlight will be not well and be fast power consumed.



FAQ

1Q Are you manufactory or trade company? We are factory located in Dongguan and ZheJiang .
2Q How can I get the samples? Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3Q How long can I expect to get the sample? Contour drawing: 2-3 days Sample time: 10-15 business days
4Q Will you offer free sample? Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge
5Q Can you design the lcd in acccordance with our demand? Sure.We will give you the best tooling charge.
6Q How to place orders ? If you confirm samples ok, Please send us your purchase order by Email or Fax , then we will send you an Invoice for deposit payment. We need to know the following information of your order.
7Q How long of mass production ? 25-30 business days. It depends on different order quantities and part number.



Factory

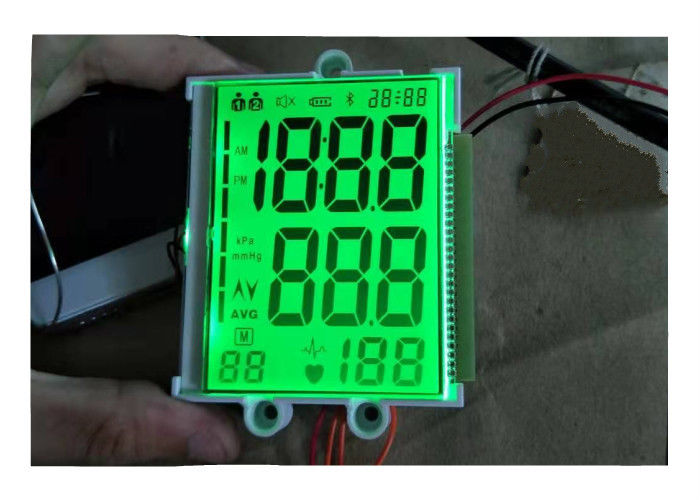

Custom LCD Positive 4 Digit Segment TN Lcd Panel Display For Sphygmomanometer 2
