1.22 Inch Round TFT LCD Display Resolustion 240 RGB * 204 For Smart Watch
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | Fangsheng |
| Certification: | ISO9001:2015 |
| Model Number: | FS012FQV01TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bubble Bag + Blister + Foam Box + Carton |
| Delivery Time: | 3~5 Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
|
Detail Information |
|||
| Resolution: | 240 * 204 | Size: | 1.22 Inch |
|---|---|---|---|
| Viewing Direction: | IPS | TFT Mode: | TFT, Transmissive |
| Outline Size: | 33.66 * 33.02 Mm * 1.54 T | Brightness: | 300 Nits |
| High Light: | tft touch screen display,tft lcd panel,TFT LCD Display 240 RGB * 204 |
||
Product Description
1.22 Inch Round TFT Lcd Display Resolustion 240 RGB * 204 For Smart Watch
A. Specifications:
| Product Name | 1.22 Inch Round TFT Lcd Display Resolustion 240 RGB * 204 For Smart Watch |
| Display Outline Size | 33.66 * 33.02 mm * 1.54 T |
| Active Area (WxH) | Ø = 30.96 mm |
| Resolution | 240 RGB * 204 |
| Viewing Angle | Circular / IPS |
| Technology Type | a-Si TFT |
| Display Mode | Normally White,Transmissive |
| Interface Type |
SPI
|
| Controller / Driver | ST7789V / ST7789H2 |
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
1.22 inch TFT Lcd Diplay: It is round or Circular small Lcd display with 240 RGB *240 Dots Maxtrix IPS TFT Lcd module, which be easily accessed by micro-processor-unit ( MPU )via parallel interface. Customized size is acceptable according to customer requirement.

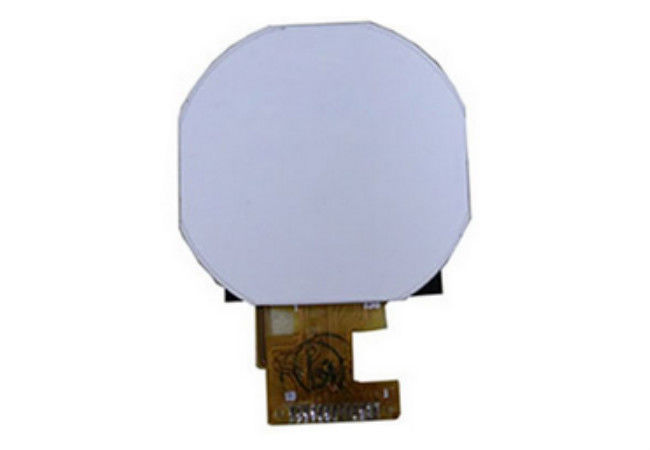

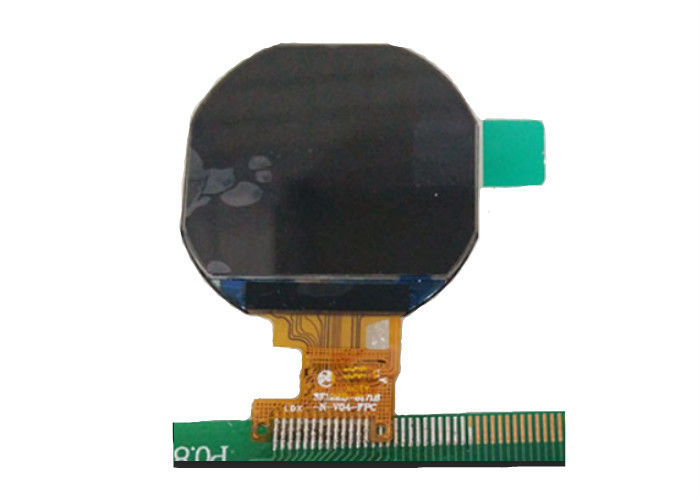

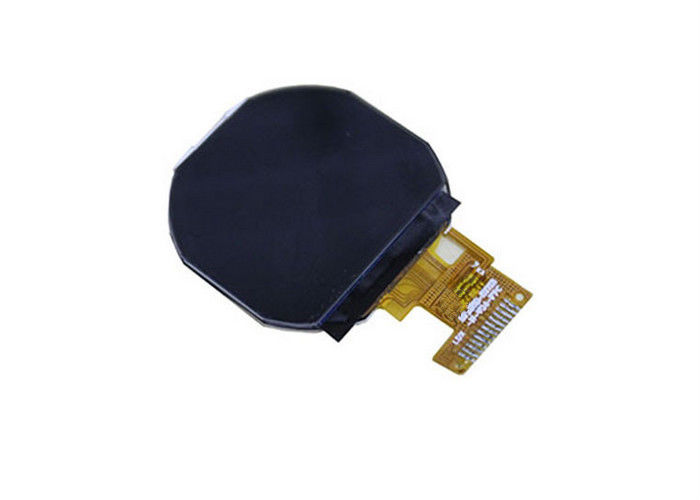

B. Product Show:
D. Pin Definition
C. Structure Diagram:
