High Contrast Lcd Module VA Monochrome Display Screen For Nail Art Machine

High Contrast Lcd Module VA Monochrome Display Screen For Nail Art Machine

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FVA3398GP01-B

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: VA LCD Display Backgound: White
Voltage: 3.6 V Connector: Pin
Driving Method: Static Or Dynamic Polarizer Type: Transmissive
High Light:

VA Monochrome LCD Screen

,

High Contrast Monochrome LCD Screen

,

Monochrome VA LCD Display

Product Description

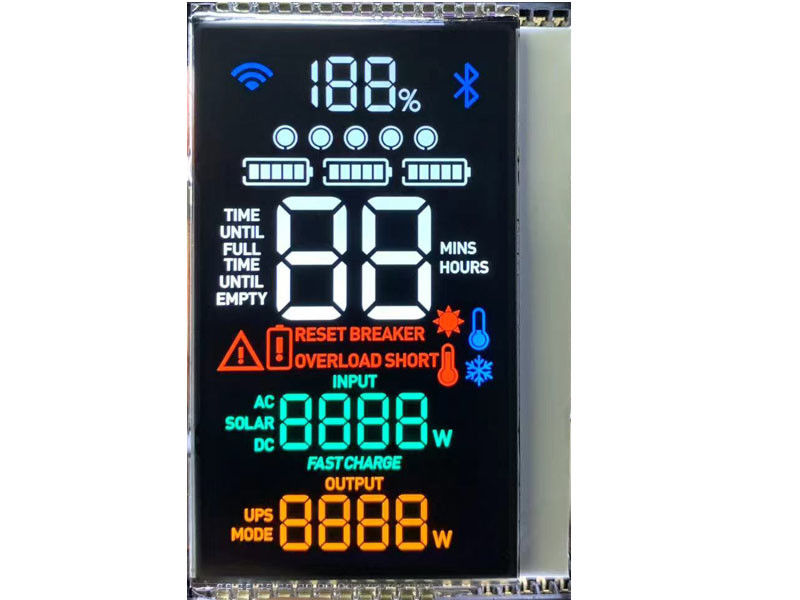

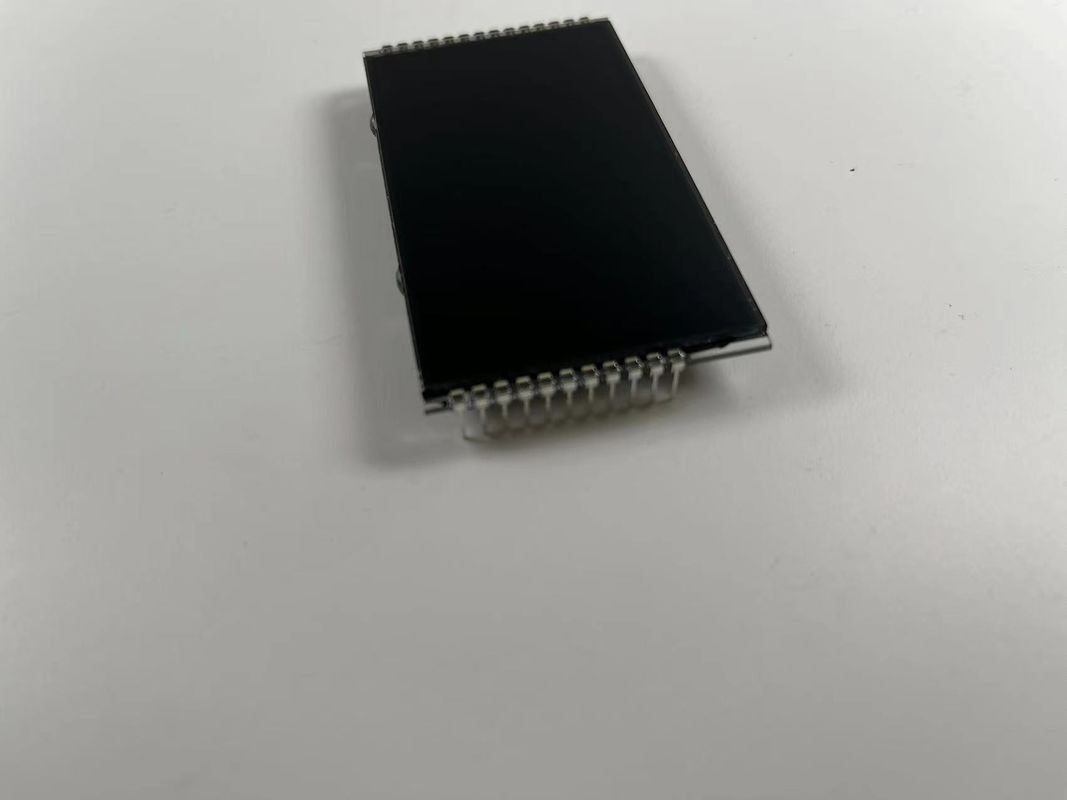

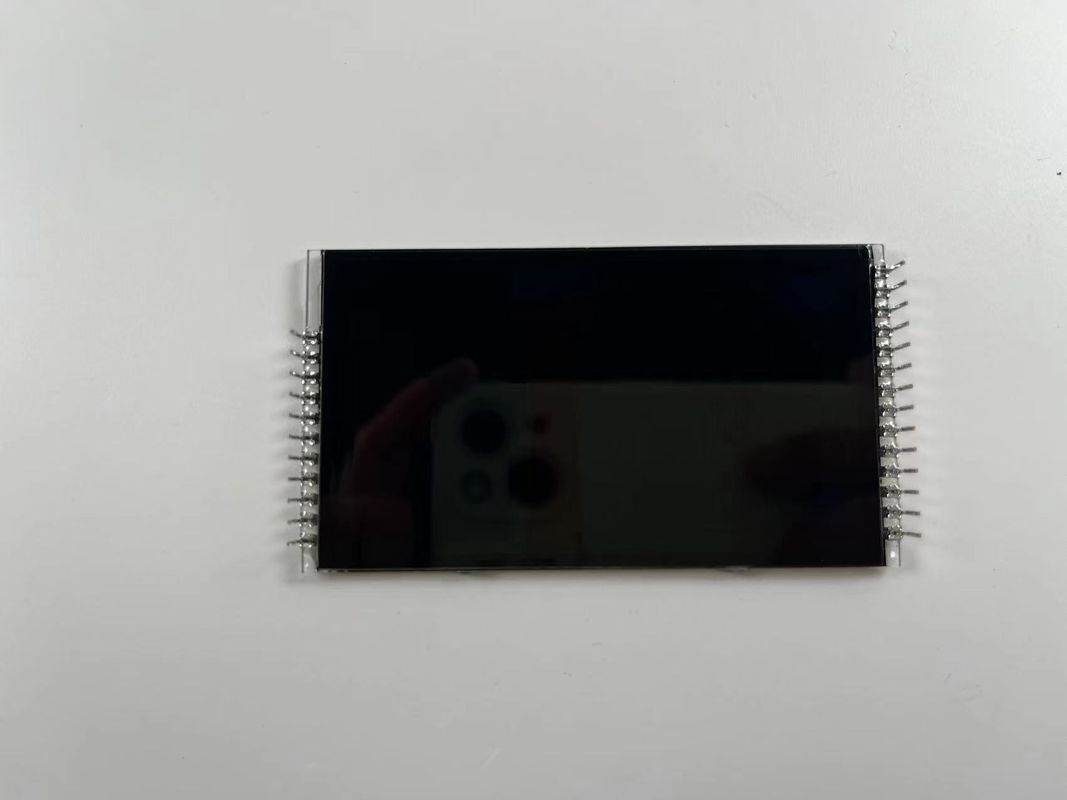

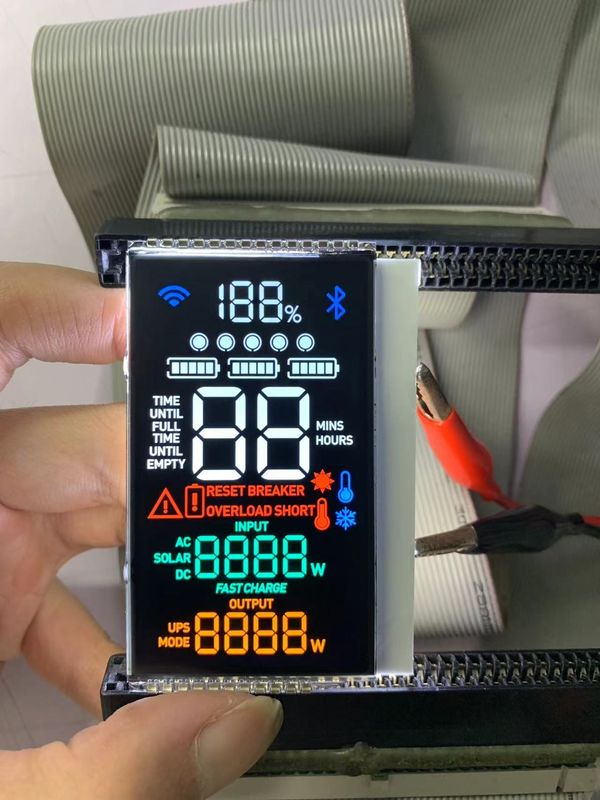

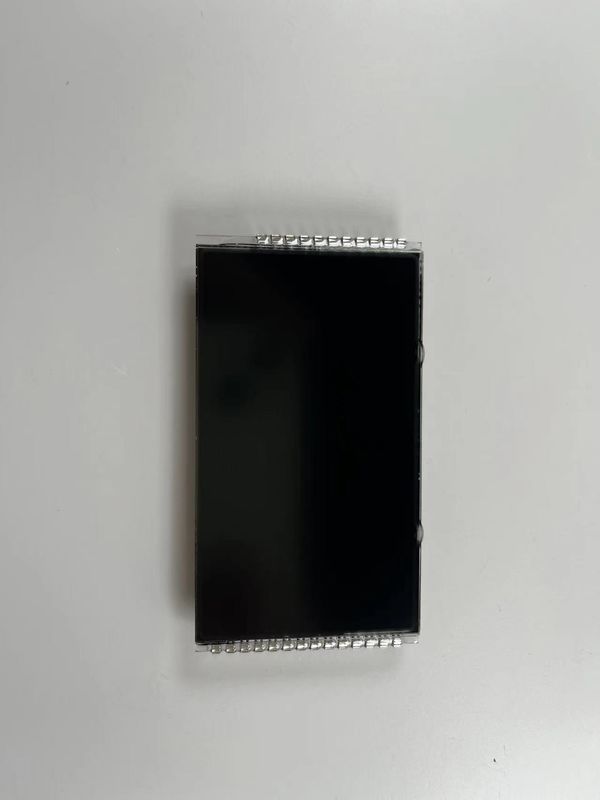

High Contrast Lcd Module VA Monochrome Display Screen For Nail Art Machine

High Contrast Lcd Module VA Monochrome Display Screen For Nail Art Machine



The terms of Business Trade
1 . Payment : T/T, L/C at sight, Western Union, Paypal, VISA, Creadit Card etc.
2 . Leading time : It takes12 -15 days for samples after receiving the tooling cost.
3 . Sample : If you want to our free sample you need to pay for the shipping fee.
4. Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.
5. 25-30 business days. It depends on different order quantitie




Specifications:

ITEM CONTENT DESCRIPTION
1 Lcd Type VA Lcd Display
2 Outline Size 50 * 60 mm * 1.1 T / mnm,  or Custom
3 Viewing Direction 6 O ' clock
4 Voltage 3.0V
5 Display Mode Nagetive
6 Polarizer Mode Transflective
7 Backlight White Led
8 LED Number 4pcs
9 Contactor Pin



WELCOME TO US:
Professonal Manufacture in Lcd Display since 2001Year.
Provide the most suitable high quality products and efficient superior service for every clients.
*LCD Screen                                                                                         *LCM Module

*TFT Colored Screen                                                                            *Monochrome Lcd

*Factory Supply                                                                                    *Specialize In Customization

*Long Time Supply                                                                               *Professional Design





How to choose LCD type?

d.1. Usually,TN LCD is widely using, such as power meter LCD, telephone LCD, calculator LCD, electric cooker LCD etc. TN LCD is cheapest , but viewing angle is narrow.
d.2. HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD.
d.3. STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much,STN LCD not only can make segment LCD,but also can make dot matrix LCD.Unit price of STN LCD is higher than HTN LCD.
d.4. FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's.
d.5. VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general,VA LCD has a excellent display result.If you want a wonderful display result,VA LCD will be your best choice.
d.6. Price of HTN is little high than TN, but low than STN, VA and FSTN.





Application

Our products have been widely used in consumer electronics and industrial meter filed, such as car audio, washing machine, cending machine, medical instrument, coffee machine. POS terminals, cash register, remote controller, counter display, portable power charger and so on.

High Contrast Lcd Module VA Monochrome Display Screen For Nail Art Machine 0



Connection Mode of LCD.
How to connect LCD on your PCB?There are four type of connectors for your choice.

1. Metal pin connector. It is very common connection way. Pins should insert into PCB holes and solder it. It is very strong and firm. LCD,LED backlight or PCB can be connected together as a LCD module.

2. Zebra strip.When it is zebra strip connector ,then zebra strip should be between LCD and PCB.You should compact LCD and PCB evenly,so that zebra trip can contact and breakover PCB with LCD.

For the connection,If you must make sure that LCD and PCB can be compacted well, or else LCD can't be displayed or just display a part.
But zebra strip is cheap.

3. Heat seal paper.Heat seal paper is a flexible connect way. Heat seal paper can be heated pressing on LCD and PCB directly. But head seal is easy to be oxidized after a few years.

4. FPC(Flexible Printed Circuit) connection. FPC connector is also a flexible connect way. FPC quality is very good compared with heat seal paper. It is a good connection way,but price and tooling charge is higher.



Inspection Standard

Surface

Inspection



18

(subordination )



Requirement PostiveLcd Display:

Punctiform defective (Lcd with dirty

spots, paster with dirty spots, glass

surface damage, polarizer damage

(after the paster is visual)

Φ=(L+W)/2

L=Length

W=Width

Inspection

Standard

10 mold 11~30 mold 31~80 mold >80 mold
φ≤0.1mm Ignored Ignored Ignored Ignored
0.1mm<φ≤0.2mm 3 3 2 2
0.2mm<φ≤0.25mm 1 1 0 0
0.25mm<φ≤0.3mm 0 0 0 0
0.3mm<φ≤0.35mm 0 0 0 0
0.10mm<φ≤0.35mm accept total quantity 3 3 2 2

Note:

1. 0.15mm<φ≤0.25mm the distance between two points should be >5mm, the above defects status can be ignored when it is outside of V/A area.

There are special status subject to customer request or sample signed

RequirementNegative Lcd Display:

Punctiform defective (Lcd with dirty

spots, paster with dirty spots, glass

surface damage, polarizer damage

(after the paster is visual)

Φ=(L+W)/2

L=Length

W=Width



Inspection

Standard

10 mold 11~30 mold 31~80 mold >80 mold
φ≤0.1mm 6 5 4 3
0.1mm<φ≤0.2mm 3 3 2 1
0.2mm<φ≤0.25mm 0 0 0 0
0.25mm<φ≤0.3mm 0 0 0 0
0.10mm<φ≤0.35mm accept total quantity 6 5 4 3

Note:

1. 0.1mm<φ≤0.25mm the distance between two points should be >5mm, the above defects status can be ignored when it is outside of V/A area.

2. There are special status subject to customer request or sample signed
