Lcd 1.44 Inch Display 128 x 128 TFT LCD Module With ST7735S Driver IC

Lcd 1.44 Inch Display 128 x 128 TFT LCD Module With ST7735S Driver IC

Product Details:

Place of Origin: Dongguan,China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: JPY1410-14P

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Bubble Bag + Blister + Foam Box + Carton
Delivery Time: 3~5 Working Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Resolution: 128 * 128 Size: 1.44 Inch
Viewing Direction: 12 O'clock TFT Mode: TFT, Transmissive
Outline Size: 29 (W) X 24.41 (H) X 2.20 (T) /mm Brightness: 180Cd / M2
High Light:

128x128 TFT LCD Module

,

ST7735S Driver IC TFT LCD Module

,

1.44 Inch TFT LCD Display Module

Product Description

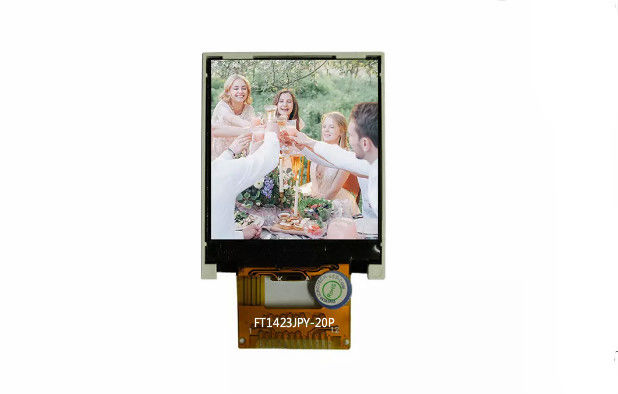

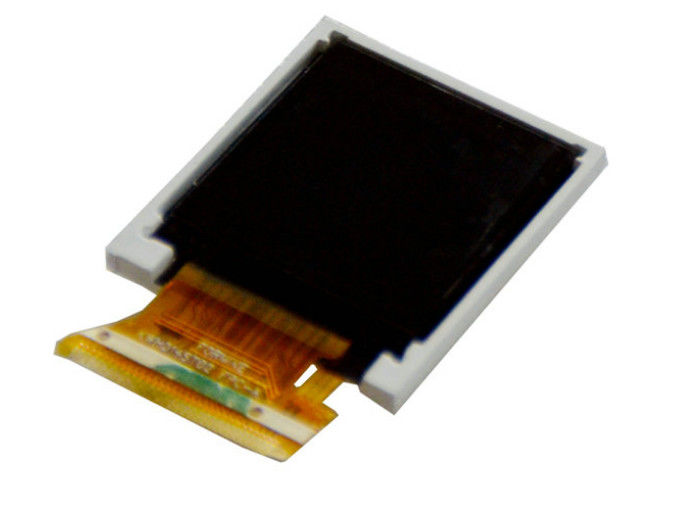

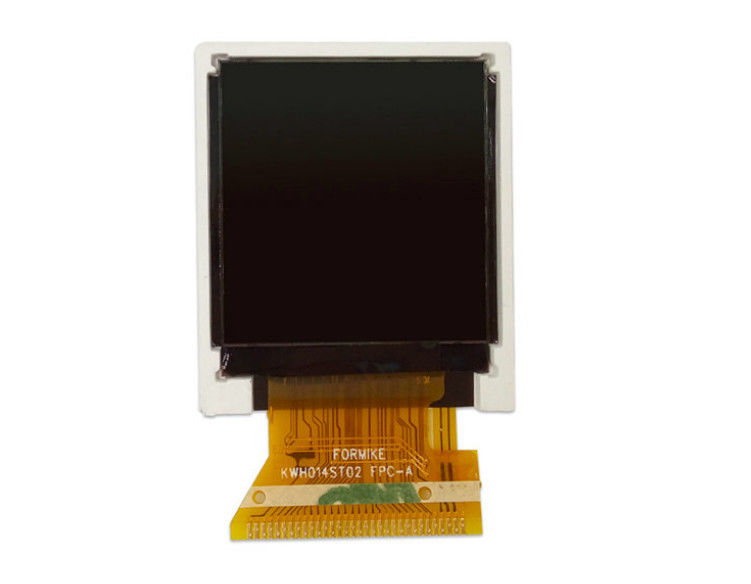

Lcd 1.44 Inch Display 128 x 128 TFT LCD Module With ST7735S Driver IC


 Diplay 1.44 Inch TFT Lcd 128x128 TFT Lcd Module Square Lcd Display MCU with ST7735S Driver IC

A. Specifications:  Download Link to ► JPY1410-14P SPEC-FS.pdf




Item Nominal Dimension Unit
Dot Matrix 128 x RGB x 128 Dot Dots
Module Size ( W×H×T ) 29 (W) x 24.41 (H) x 2.20 (T) /mm mm.
Pixel arrangement RGB  mm.
Dot Pitch ( W×H ) 0.199 (H) x 0.207(V) mm.
Interface SPI-4WIRE
Driving IC Package COG
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
IC Drive ST7735S
LCD Mode TN/Normal White
Backlight Type 2 LEDs White LED PCS


Our Advantage:


1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days



Our Certificates:


1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display




We promise the long term continuity supply for this product no less than 20 years since 2001.



B. More Products:

Lcd 1.44 Inch Display 128 x 128 TFT LCD Module With ST7735S Driver IC 0



Our Valuable Customer:
 Lcd 1.44 Inch Display 128 x 128 TFT LCD Module With ST7735S Driver IC 1




  Lcd 1.44 Inch Display 128 x 128 TFT LCD Module With ST7735S Driver IC 2
*
Dongguan Fangsheng Electronic Co., Ltd is a high-tech enterprise specializing in R&D, manufacturing and marketing of LCD and LCM.

*  It was founded in 2001 with two major production bases which are respectively in Dongguag province and Wuyi of Zhejiang province.

* A professional team with years of experience in Lcd Technology field, and establised a perfect quality control and management system.

* We provide high-quality products at reasonable prices in domestic and overseas markets, keep up with the development of the market, and        strive for excellence in innovation and manufacturing



Item Building & Capacity Information Remark
1 Address & Conctactor In Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China

Cotact: fssales04@fsdzlcd.com

Or Fancy@fsdzlcd.com

M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038

Skype+86 189 2546 1855

Tel: +86 769 22705392-815

Fax: +86 769 22705825


2 Staff Direct+ Indirect Labors +120
3 Build 1 Office , Factory, Warehouse 4,100M² Total 5,000M²
4 Build 2 Dormitory 913M²
5 Product Capacity * LCM Drawing:2-7 days
* LCM Sample:3-6 weeks
* Lead Time for Mass *Production:4 - 8 weeks
* LCM Cap: 30K/D
* BL Cap:30K/D
* CTP Cap:3K/D

6 Production Line * Automatic Production Lines
* Semi-Automatic Production Lines
* Semi-Automatic backlight assembly lines
* Capacitive touch panel assembly line
* TFT&CTP optical bonding




RFQ

1.Q: Are you manufactory or trade company?



A: We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!





2. Q: How can I get the samples?



A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect





3. Q: How long can I expect to get the sample?



A: Contour drawing: 2-3 days Sample time: 10-15 business days





4. Q: Will you offer free sample?



A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.





5. Q: Can you design the lcd in acccordance with our demand?



A: Sure.We will give you the best tooling charge.





6. Q: How to place orders ?



A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.



1) Product information-Quantity,part number



2) Delivery time required.



3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4) Forwarder's contact details if you have any in China.





7. Q: How long of mass production ?



A: 25-30 business days. It depends on different order quantities and part number.
