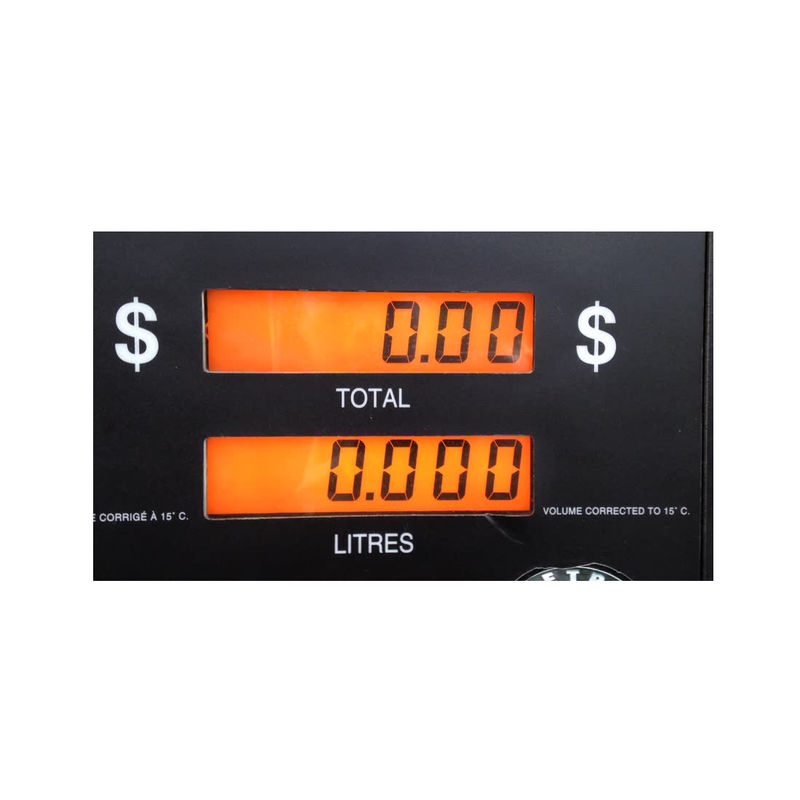

6 Digit 70 Pin Fuel Dispenser HTN LCD Display With Orange Backlight

6 Digit 70 Pin Fuel Dispenser HTN LCD Display With Orange Backlight

Product Details:

Place of Origin: Dongguan, China
Brand Name: Fangsheng
Certification: ISO9001:2015
Model Number: FSTN000016

Payment & Shipping Terms:

Minimum Order Quantity: 3000
Price: Negotiation
Packaging Details: Bubble bag + Blister + Foam box + Carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T, Western Union, Paypal, Credit Card, D/A, D/P, L/C
Supply Ability: 200K Sets / Month
Get Best Price Contact Now

Detail Information

Type: HTN LCD Screen Storage Temp:: -30-+80℃
Voltage: 3-5 V Backlight: Orange
Driving Method: Static/Dynamic Polarizer Type: Transflective/Transmissive
High Light:

blue film lcd

,

negative lcd display

Product Description

6 Digit 70 Pin Fuel Dispenser HTN LCD Display With Orange Backlight

6 Digit 70 Pin Fuel Dispenser LCD Display with Orange Backlight

Model HTN
Appearance Normal,Special,octagonal
Active area According to customer demand to customized
Working Temp. -20 to 70
Storage temp. -30 to 80
Viewing direction contrast ratio>10:1 parallel angle:60 to 60 Vertical:30 to 60
Working Voltage customized
Respond Time on:180ms off:200ms
Specification Customized
Driver Way as normal lcd,can customized






What is HTN LCD?

HTN (High Twisted Nematic) nematic liquid crystal molecules are sandwiched between two transparent glasses, and the orientation of the liquid crystal molecules is deflected by 110 to 130 degrees between two glass layers. This type of LCD is characterized by high contrast, low power consumption, low driving voltage, and poor dynamic driving performance, but the viewing angle is wider than that of the TN type.

6 Digit 70 Pin Fuel Dispenser HTN LCD Display With Orange Backlight 0

Custom kinds of fuel dispenser lcd display :

6 Digit 70 Pin Fuel Dispenser HTN LCD Display With Orange Backlight 1
